EVB624

Name: EVB624
SKU: 307070101
Availability: InStock

Categories: EV

The EVB624 is designed to balance the internal cells of battery packs, helping to correct voltage inconsistencies between cells. When significant voltage variance is detected, it can be used to restore uniform voltage levels across the battery pack.

It is especially useful after replacing cells within a battery module, ensuring proper balancing and stable performance across all cells.

$7,689.00 Ex Tax: $6,990.00

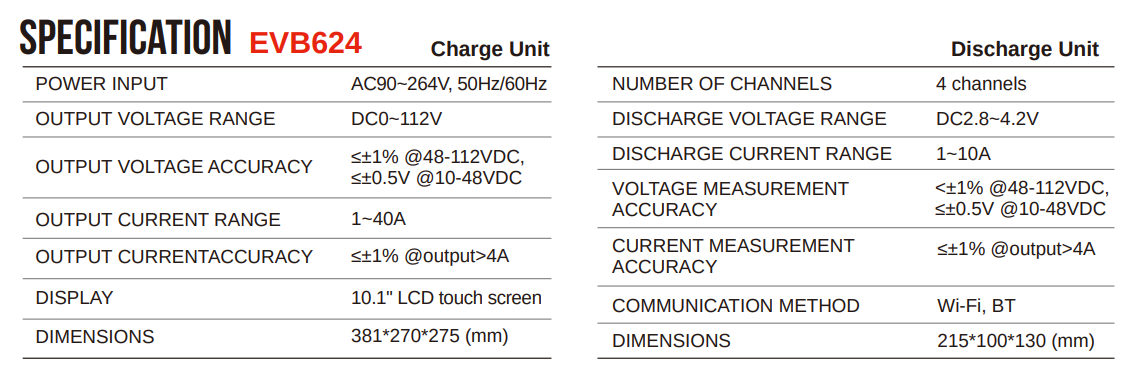

Features Specs Media Documents

Description

Feature

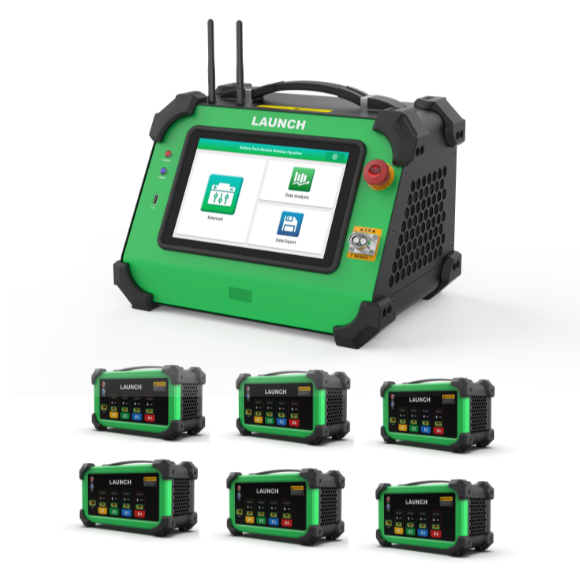

Charging Unit + 6 Discharging Units

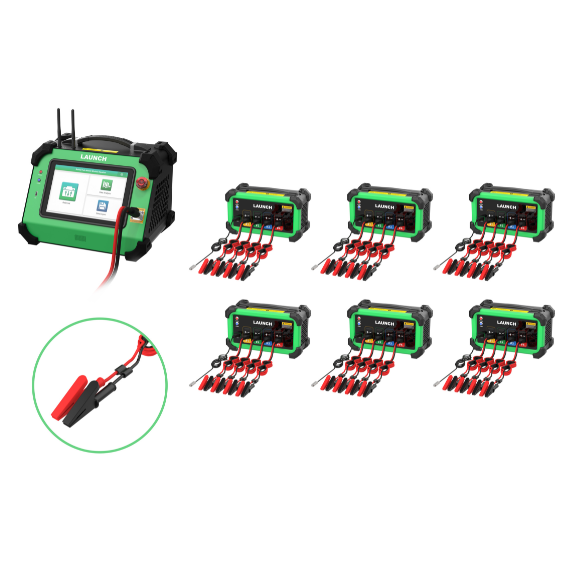

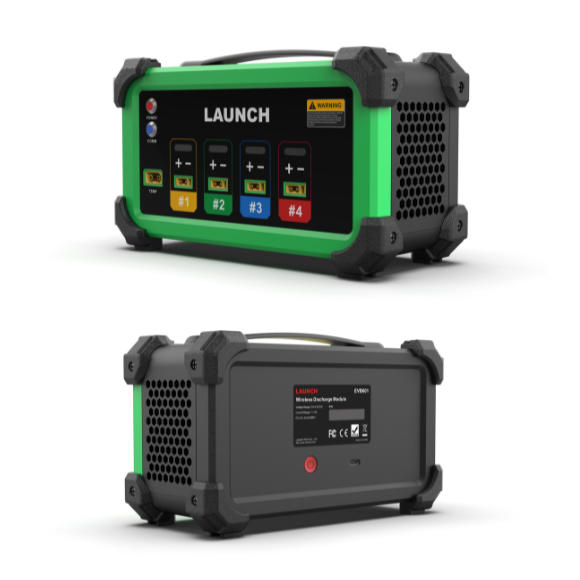

1. Separate charging and discharging design, with balancer channels freely combinable, supporting simultaneous balancing of up to 24 battery cells. (Each discharge unit supports 4 channels).

2. Wireless networking communication facilitates the expansion of balancer channel quantity.

3. Compatible with all common lithium battery types on the market.

4. Supports two modes: charge&discharge balance and discharge balance.

5. High-precision voltage acquisition module for safe and precise balancing control.

6. Each battery cell is wired separately and independently, effectively avoiding connection errors.

7. Safety Protections:

Overvoltage, undervoltage, overcurrent, output short circuit, reverse connection, overtemperature, etc.
