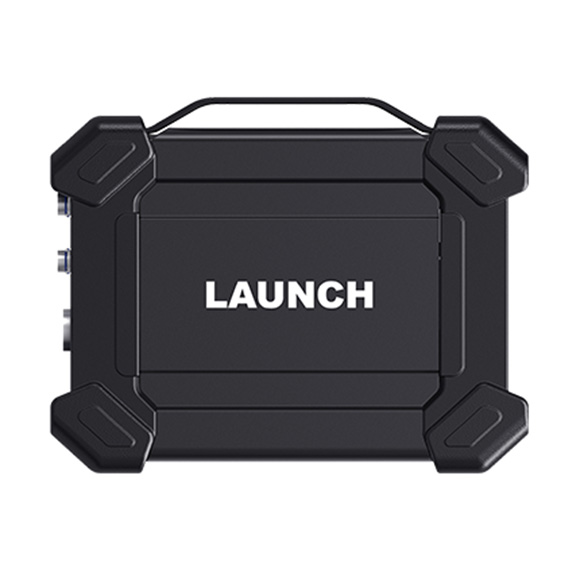

Feature
1. Check the ECU itself works or not
2. It supports manual write the waveform data
3. Simulate working condition of sensors without replacing parts
4. Simulate some special working condition of sensors without replacing parts
5. Be used as Multimeter to measures resistance, voltage AC/DC, capacitance, frequency and pulse signals, etc.
6. One click to enters the intuitive menu of sensor, actuator, defined/drawn the waveform, timing waveform, multimeter, system settings.
Specification
| Number of channel | 2 |
| Voltage simulation range | 0~20V |
| Max. output current | 20mA |
| Square wave signal pulse frequency | 0~15KHz |
| Square wave signal duty cycle | 0~100% |
| DCV simulation | Support |
| Frequency simulation | Support |
| Multimeter | Support |
| Operating temperature range | 0℃~50℃ |
| Storage temperature range | -30℃~70℃ |
| Certificate | CE, FCC, RoHS |
